Designation

Leica APO-Televid 65 angle view (45°)

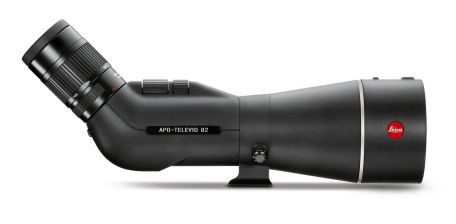

Leica APO-Televid 82 angle view (45°)

Device type

Spotting scope

Spotting scope

Order no.

40 152 (black with silver ring at objective lens )

40 156 (APO-TELEVID 65 Kit  with zoom eyepiece 25x-50x WW ASPH.

40 150 (black with silver ring at objective lens )

40 154 (APO-TELEVID 82 Kit  with zoom eyepiece 25x-50x WW ASPH.

Scope of delivery

Front and rear caps

Front and rear caps

Magnification

see eyepiece chart

see eyepiece chart

Front lens diameter

65 mm

82 mm

Lens focal length

approx. 440 mm

approx. 440 mm

Close distance

approx. 9.5 ft / 2.9 m

approx. 12.8 ft / 3.9 m

Exit pupil, twilight factor  and field of view

see eyepiece chart

see eyepiece chart

Focussing

Internal focusing with patented  dual focusing device

Internal focusing with patented  dual focusing device

Lens coating

HDC™ Multi-coating, High-Lux-Pro (HLP™), AquaDura® coating

HDC™ Multi-coating, High-Lux-Pro (HLP™), AquaDura® coating

Prism system

Schmidt prism system

Schmidt prism system

Watertightness

to a depth of 16.5 ft / 5 m

to a depth of 16.5 ft / 5 m

Housing

Die-cast magnesium, nitrogen-filled

Die-cast magnesium, nitrogen-filled

Eyepiece connection

Rapid-change bayonet

Rapid-change bayonet

Tripod thread

1/4", rotating with locking screw,

Tripod base suitable for ARCA-Swiss,  Manfrotto 200PL

1/4“, rotating with locking screw,

Tripod base suitable for ARCA-Swiss,  Manfrotto 200PL

Lens hood

Sliding lens hood with sighting aid

Sliding lens hood with sighting aid

Filter thread mount

E82

E67

Dimensions (W x H x D)

11.81 x 4.13 x 3.27 in / 300 x 105 x 83 mm

12.79 x 4.17 x 3.98 in / 325 x 106 x 101 mm

Weight

42.3 oz / 1200 g

54.9 oz / 1550 g
